‑ Supporting equipment for cutting system and printer,to make the paper stack lift and down.
‑ Two operation modes (Manual and Automatic) control pallet lift and down.
‑ Max. height of Pallet move:900mm.

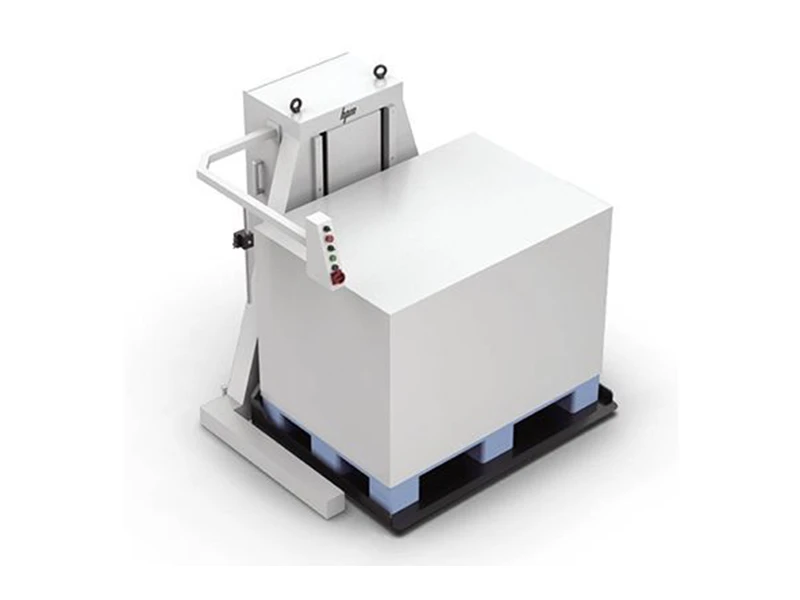

SJ1000-1500 Elevator
‑ Supporting equipment for cutting system and printer,to make the paper stack lift and down.
‑ Two operation modes (Manual and Automatic) control pallet lift and down.
‑ Max. height of Pallet move:900mm.
‑ Two operation modes (Manual and Automatic) control pallet lift and down.
‑ Max. height of Pallet move:900mm.
Features
Description
| Model | SJ1000 | SJ1500 | |
|---|---|---|---|
| Max.Length of Pallet(L) |
mm
|
1355
|
1690
|
| inch | 53.3 | 64.5 | |
| Max.Width of Pallet(W) | mm | 997 | 1220 |
| inch | 39.3 | 46 | |
| Max.Height of Pallet move | mm | 900 | 900 |
| inch | 35.4 | 35.4 | |
| Max.Loading Capacity | kg | 1500 | 2000 |
| Gross Power | kw | 1.5 | 1.5 |
| Net Weight | kg | 710 | 810 |
| Gross Weight | kg | 870 | 970 |
| Packing Size(L×W×H) | mm | 1970×1670×1750 | 2220×1920×1750 |
